Home OTDRs >> OTDR >> VIAVI JDSU SmartOTDR with E100AS Module
OTDRs

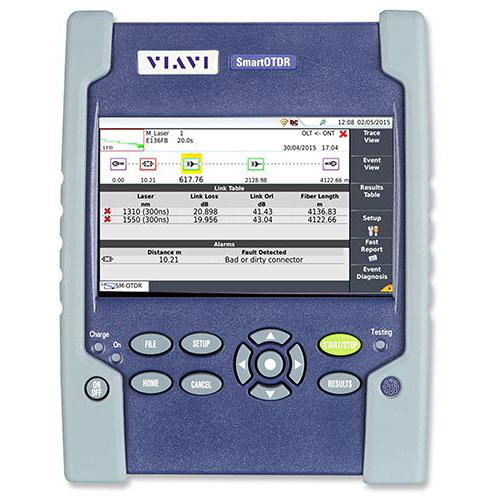

VIAVI JDSU SmartOTDR with E100AS Module
Manufacturer:
  VIAVI JDSU
Model:
  SmartOTDR
Condition:
  New
Availability:
  Yes
Price:
  $2,200.00
Qty:
Description:
SmartOTDR with E100AS Module,1310/1550nm,30/30dB, USD2200/set. SmartOTDR with E100AS Module, 1310/1550nm,35/37dB, USD2450/set.

   Feature
 The affordable, easy-to-use handheld tester for techs at any level

 The lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks—with a tailored OTDR interface and automatic analysis that any technician can understand.

 With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.


 Key Benefits
● Combines all essential fiber tests in one handheld with visual fault locator (VFL),
   optical power meter (OPM), and P5000i microscope options
● Simplifies OTDR analysis with Smart Link Mapper (SLM) option
● Upgrades easily in the field
● Automates testing with objective, pass/fail results
● Enhances productivity anywhere with powerful network connectivity options

Key Features
● Light, compact, hands-free design includes 5” high-visibility outdoor touch screen
● Integrated CW light source
● Automated fiber inspection and macrobend detection with pass/fail analysis software
● 3G/4G connectivity via USB, Bluetooth®/ WiFi options
● 1-year warranty
● All-day battery life
   Details
Specifications (typical at 25°C)
General
Display
5-inch capacitive color touch screen (12.5 cm)
Display resolution
800 x 480 W VGA
Interfaces
2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available)
Storage
10,000 OTDR traces typical
Battery
Rechargeable Lithium-polymer battery, up to 20 hours of operation1
Power supply
AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W
Electrical safety
EN60950 compliant
Size (HxWxD)
175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in)
Weight (battery included)
Approx. 0.9 kg (1.98 lb)
Operating/storage temperature
Operating: –20 to +50°C; storage: –20 to +60°C
Humidity (noncondensing)
95%
OTDR 100 AS
Laser safety class (21 CFR)
Class 1
Number of data points
Up to 256,000 data points
Display range
0.1 km to 260 km
Sampling resolution
4 cm
Distance accuracy
(±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties
Attenuation resolution
0.001 dB
Attenuation linearity
±0.04 dB/dB
Central Wavelength2
1310/1550nm ±20nm
RMS Dynamic Range3
30/30 dB
Pulse widths
5 ns to 20 μs
Event dead zone4
1.35m
Attenuation dead zone5
4m
CW Light Source
Output power level6
–3.5 dBm
Stability long term (8 hr)7
±0.05 dB
Built-in Power Meter (optional)
Operating mode
270, 330, 1 kHz, 2 kHz, and TWINTest
Power level range
0 to –55 dBm
Calibrated wavelengths
1310, 1490, 1550, 1625, and 1650 nm
Measurement accuracy8
±0.5 dB
Built-in Visual Fault Locator (optional)


Ordering Information

SmartOTDR Configuration
Part Number
Includes a hands-free soft case with neck strap and a stylus for the capacitive touch screen.
SmartOTDR 1550nm AS-range handheld tester with APC connector
E100AS-APC
OTDR Connector Adapters
SC universal adapter (standard)
EUSCADS
FC universal adapter (optional)
EUFCADS
LC universal adapter (optional)
EULCADS
Battery
Lithium polymer battery
E10LIPO
Accessories
Hands-free soft case with neck strap
E10GLOVE
Stylus for capacitive touch screen
EHVT-STYLUS
Large soft carrying case (optional)
E40SCASE1
12 V car lighter adapter (optional)
E40LIGHTER
EU/US-to-India type D power adapter (optional)
EINDIADPLUG
Optional Tools and Firmware Apps
VFL with 2.5 mm UPP adapter
E10VFL
Optical power meter option (same port as OTDR)
E10PM
MP-60 USB optical power meter with 2.5 and 1.25 mm UPP adapters
MP-60A
MP-80 USB high-power optical power meter with 2.5 and 1.25 mm UPP adapters
MP-80A
P5000i digital microscope kit with 7 tips
FBP-MTS-101
Built-in WiFi
E10WIFI
Built-in Bluetooth
E10BLUE
External WiFi USB dongle
E60EWIFI
External Bluetooth USB dongle
E60EBLUE
FTTA-SLM
ESMARTFTTA-100
FTTH-SLM
ESMARTFTTH-100
SLM
ESMARTLINK-100
CABLE-SLM
ESMARTCABL-100
SmartAccess Anywhere
SAA-100-L2
1310nm wavelength
E113WEB
Extended dynamic range (35dB at 1550nm/ 37dB at 1310nm
if available)
EXTRANGE100WEB
