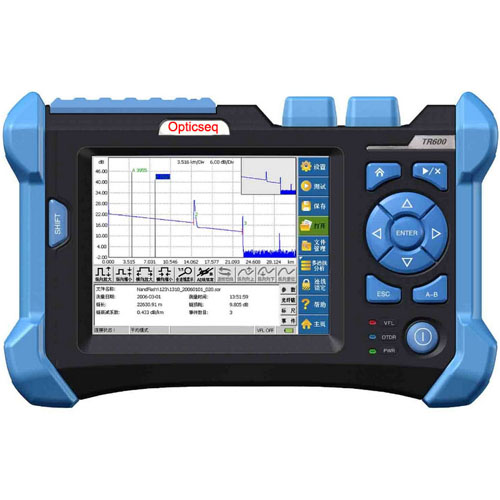

Opticseq TR600 Series OTDR
Manufacturer:
  Opticseq
Model:
  TR600
Condition:
  New
Availability:
  Yes
Price:
  $1,200.00
Qty:
Description:

   Feature
Feature:
●Large touch screen + shortcut keys, easy to operate
●Large-capacity polymer lithium battery, with superlong working hours
●Intelligent testing, simple use , powerful function.
●Dual-media of Memorty Card+ SD card, with superlarge storage capacity of traces.
●Able to meet FTTx testing needs.
●Several wavelengths can be chosen.
●Solid casing design, dustproof and shockproof
   Details
Specifications
Wavelength(nm)
1310/1550
1310/1490/1550
1625
850/1300
Dynamic range(dB)
32/30
38/36
42/40
32/30/30
36
20/18
Pulse width (ns)
5,10,20,40,80,160,320,640,1280,
2560,5120,10240,20480
5,20,40,80,160,
320,640,1280
Event blind zone (m)
≤1.8m
Attenuation blind zone (m)
≤10m
Display
5.6 inch TFT LCD touch screen,640*480
Linearity (dB/dB)
±0.05 dB/ dB
Loss threshold (dB)
0.05
Loss resolution ratio (dB)
0.001
Sampling resolution ratio (m)
0.125 to 8
Sampling point
32K
Distance uncertainty (m)
±(1 m + 5×10-5× distance+samping interval)
Distance scope (km)
0.3至180
Typical real-time refreshing duration
0.2s
Memory capacity of trace
SD卡(8G),>10000 pieces
Duration of measurement
5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable


General specification
Dimension(H×W×D)
150×235×66mm
Weight
1.5kg
Temperature
Operating temperature  -10℃ to 50℃
Storage temperature  -40℃ to 70℃
Relative humidity
0% to 95% (non condensation)
Power supply
Lithium battery; continuing working duration ≥ 8 hours
Interface category
Optical interface
FC/UPC (PC and APCare selectable)
Data interface
USB interface, SD card interdace
Visible failure orientation VFL
Wavelength
650nm
Output power(dBm)
≥-3
Maximum testing distance
3km
