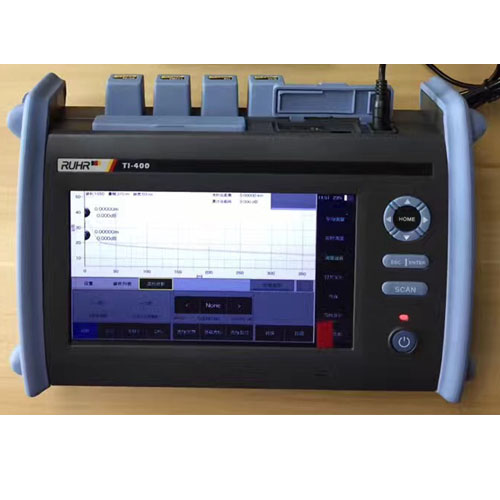

RUHR TI-400 Series OTDR
Manufacturer:
  RUHR
Model:
  TI-400
Condition:
  New
Availability:
  10 units
Price:
  $1,850.00
Qty:
Description:

   Feature

Specifications

LCD:7 inch color TFT LCD(multi touch capacitive touch screen)

Electrical interface:USB2.0X3(TypeA X2,TypeB(mini) X1)Ethernet
   (10M/100M)
TF card slotX1BuzzerX1Headphone jackX1

Power connectorDC 12V

Data storageInternal storage more than 10000 waveforms, external storageTF 64G

Working temperature:-10~50

Storage temperature:-40~70

Relative humidity:<90% (20~90%,no condensation)

Appearance size:261mm(W)X174mm(H)X72mm(D)(Not including bumps)

Weight (including battery):1.6kg

Features & Benefits

WIFI

Can be connected to the cellphone APP or the Internet

Bluetooth

1.Speed> 150Mbps/s

2.support for Bluetooth 2.0,3.0,4.0

3. low power mode

4.Can be connected to the cellphone APP

Network port(RJ45)

Support Pingtesting

GPS/Beidou module

1.Precise location

2.resource census

Built-in temperature and humidity sensor

1.Temperature range:- 40to 125

2.Temperature accuracy: +/- 0.2

3.Humidity range:0~100%

4.Humidity accuracy: +/- 3%

USB HOST

  1.Keyboard

  2. Mouse

  3.Fiber microscope

  4.USB drive

Serial port

Support serial communication

Intelligent optical link go

The advanced application basedon OTDR function, uses automatic release pulse
   test collection method, anddisplays the optical chain in the form of optical link
   view.Each node ofoptical link has the characteristics of high intelligence and
   simple operation,so it can solve the problem quickly and efficiently

Fiber microscope

USB direct connection device,you can clearly judge the status of the end of the
  optical fiber by amplifyingthe image, such as scratches, dirt, etc., It is the best
  choice for fiber enddetection, suitable for a variety of environments

Work Order System

 1.Managers can distribute workorders via web or cell phone APP.

 2. Construction workers canreceive work orders by instrument or cell phone APP.

 3.Managers can monitor theconstruction process through the GPS/ compass's geographical location and

   Details
OTDR Module

Module
TI-8232F
TI-8237H
TI-8240M
TI-8242Z
TI-19655F
TI-19988H
Optical Interface
1310nm/1510nm:FC/UPC(Can choose SC/UPC)
1625nm:FC/APC(Can choose SC/UPC)
Dynamic Range
1310nm/1550nm
1310nm/1550nm/1625nm
32/30dB
37/35dB
40/38dB
42/40dB
36/35/35dB
38/37/37dB
Attenuation dead zone
5m
4m
4m
4m
4m
4m
Event dead zone
2m
1m
1m
0.8m
1m
1m
Pulse width
5ns,10ns,25ns,50ns,100ns,250ns,500ns,1us,2.5us,5us,10us,20us
Measurement time
5s,15s,30s,60s,120s,180s
Range selection
370m,2km,5km,10km,20km,40km,60km,80km,100km,160km,200km300km(TI-8240M machine configuration),400km(TI-8242Z machine configuration)
Linearity
±0.03dB/dB
Loss threshold
0.01dB
Loss resolution
0.001dB
Sampling resolution
0.1m
Sampling point
200000
Distance accuracy
±(0.8+0.005%*Actual optical fiber distance + sampling error)m
Real-time refresh
4Hz



OPM module

Waveform display of OPM
Curve display to detect the stability of light source
Interface
FC--2.5MM metal ring
Power range
-70~ +8dBm
-60~+18dBm(Optional)
-50~ +26dBm(Optional)
-40~+33dBm(Optional)
Calibration wavelength
850nm,1300nm,1310nm,1490nm,1550nm,1625nm
Power uncertainty
±0.2dB
Display resolution
0.01dB
VFL module
Visible light source
650nm±20nm
Output power
5mW
Modulation mode
CW
