Home OTDRs >> OTDR >> VIAVI SmartOTDR E136FB-PC B Rang OTDR,1310/1550/1625nm,40/40/41dB
OTDRs

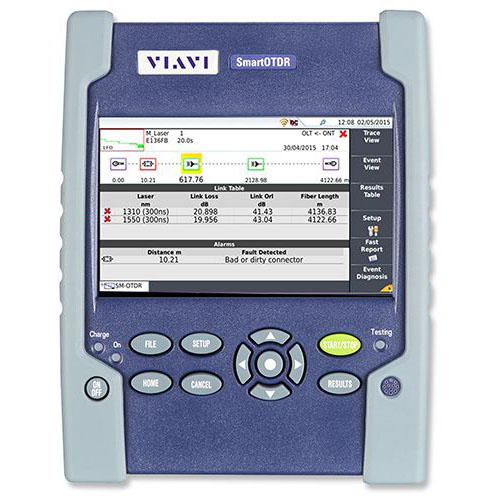

VIAVI SmartOTDR E136FB-PC B Rang OTDR,1310/1550/1625nm,40/40/41dB
Manufacturer:
  VIAVI/JDSU
Model:
  E136FB-PC
Condition:
  New
Availability:
  Yes
Price:
  $6,600.00
Qty:
Description:

   Feature
The affordable, easy-to-use handheld tester for techs at any level
 The lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks—with a tailored OTDR interface and automatic analysis that any technician can understand.

 With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
 Key Benefits
● Combines all essential fiber tests in one handheld with visual fault locator (VFL),
   optical power meter (OPM), and P5000i microscope options
● Simplifies OTDR analysis with Smart Link Mapper (SLM) option
● Upgrades easily in the field
● Automates testing with objective, pass/fail results
● Enhances productivity anywhere with powerful network connectivity options

Key Features
● Light, compact, hands-free design includes 5” high-visibility outdoor touch screen
● Integrated CW light source
● Automated fiber inspection and macrobend detection with pass/fail analysis software
● 3G/4G connectivity via USB, Bluetooth®/ WiFi options
● 1-year warranty
● All-day battery life


Specifications (typical at 25°C)

General
Display
5-inch capacitive color touch screen (12.5 cm)
Display resolution
800 x 480 W VGA
Interfaces
2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available)
Storage
10,000 OTDR traces typical
Battery
Rechargeable Lithium-polymer battery, up to 20 hours of operation1
Power supply
AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W
Electrical safety
EN60950 compliant
Size (HxWxD)
175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in)
Weight (battery included)
Approx. 0.9 kg (1.98 lb)
Operating/storage temperature
Operating: –20 to +50°C; storage: –20 to +60°C
Humidity (noncondensing)
95%
OTDR
Laser safety class (21 CFR)
Class 1
Number of data points
Up to 256,000 data points
Display range
0.1 km to 260 km
Sampling resolution
4 cm
Distance accuracy
(±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties

SmartOTDR 100A
SmartOTDR 100B
Central Wavelength
1310/1550/1650nm ±20nm
1310/1550/1650nm ±20nm
Dynamic Range
37/35/32 dB
40/40/41 dB
Pulse widths
5 ns to 20 μs
3 ns to 20 μs
Event dead zone
1.35m
0.9m
Attenuation dead zone
4m
2.5m
Splitter attenuation dead zone
Not available
45 m after 15 dB splitter loss
CW Light Source
Output power level6
–3.5 dBm
Stability long term (8 hr)7
±0.05 dB
Built-in Power Meter (optional)
Operating mode
270, 330, 1 kHz, 2 kHz, and TWINTest
Power level range
0 to –55 dBm
Calibrated wavelengths
1310, 1490, 1550, 1625, and 1650 nm
Measurement accuracy8
±0.5 dB
Built-in Visual Fault Locator (optional)
Wavelength
 650 nm
Emission mode
CW, 1 Hz
Laser class
Class 2 per EN60825-1 and FDA21 CFR Part 1040.10 standards
Built-in PON/XG-PON Power Meter (E118FA65PPM version)
Wavelengths
1490/1550 nm; 1490/1578 nm
Measurement ranges
1490 nm: –35 to +5 dB m ; 1 550/1578 nm: –35 to +23 dBm
Measurement accuracy
±0.5 dB
   Details
Ordering Information
SmartOTDR Configurations
Part Number
Includes a hands-free soft case with neck strap and a stylus for the capacitive touch screen.
SmartOTDR filtered 1650 nm A-range handheld tester with APC connector
E100AS-APC
SmartOTDR filtered 1650 nm A-range handheld tester with PON-XGPON (1490/1550/1578 nm) power meter and APC connector
E118FA65PPM-APC
SmartOTDR 1310/1550 nm A-range handheld tester with PC or APC connector
E126A-PC/-APC
SmartOTDR 1310/1550/filtered 1650 nm A-range handheld tester with PC or APC connector*
E138FA65-PC/-APC
SmartOTDR 1310/1550 nm B-range handheld tester with PC or APC connector
E126B-PC/-APC
SmartOTDR 1310/1550 nm and filtered 1625 nm B-range handheld tester with PC or APC connector*
E136FB-PC/-APC
OTDR Connector Adapters
SC universal adapter (standard)
EUSCADS
FC universal adapter (optional)
EUFCADS
LC universal adapter (optional)
EULCADS
Battery
AA battery pack (tray + batteries)
E10DRYBAT
Lithium polymer battery
E10LIPO
Accessories
Hands-free soft case with neck strap
E10GLOVE
Stylus for capacitive touch screen
EHVT-STYLUS
Large soft carrying case (optional)
E40SCASE1
12 V car lighter adapter (optional)
E40LIGHTER
EU/US-to-India type D power adapter (optional)
EINDIADPLUG
Optional Tools and Firmware Apps
VFL with 2.5 mm UPP adapter
E10VFL
Optical power meter option (same port as OTDR)
E10PM
MP-60 USB optical power meter with 2.5 and 1.25 mm UPP adapters
MP-60A
MP-80 USB high-power optical power meter with 2.5 and 1.25 mm UPP adapters
MP-80A
P5000i digital microscope kit with 7 tips
FBP-MTS-101
Built-in WiFi
E10WIFI
Built-in Bluetooth
E10BLUE
External WiFi USB dongle
E60EWIFI
External Bluetooth USB dongle
E60EBLUE
FTTA-SLM
ESMARTFTTA-100
FTTH-SLM
ESMARTFTTH-100
SLM
ESMARTLINK-100
CABLE-SLM
ESMARTCABL-100
SmartAccess Anywhere
SAA-100-L2
