Empower field technicians to make fast and precise measurements
At-a-glance

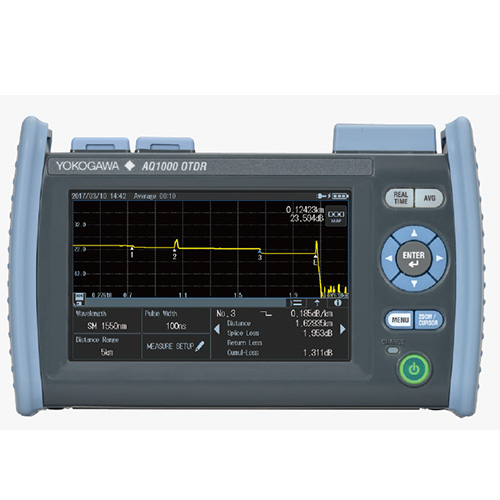

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.
Wavelengths: 1310 / 1550 nm
Dynamic ranges: 32 / 30 dB
Size: 185 mm (W) × 116 mm (H) × 56 mm (D)
Weight: 660 g
Multi-touch touchscreen
Intuitive and responsive
Tap, swipe, pinch or press. the high resolution, responsive 5.0-inch multi-touch capacitive touchscreen and hard-key buttons make OTDR operations simple and intuitive.
One-button measurement
Full-Auto
Simply pressing one singe button, the AQ1000 initiates an OTDR measurement, detects and comprehensively characterizes network events with PASS/FAIL judgment based on user-defined thresholds. The measurement data can be saved automatically if desired.
Real-Time
Simple and fast way to observe how the network connection looks like and make a Pass/Fail judgment of the network connection. The markers enables distance and loss measurements.
OTDR view modes
Trace view
Traditional view with OTDR waveforms and event markers.
Map view
Simple, icon-based map view for easy interpretation of network events.
Long battery operation time
Over 10 hours!
No worrying about running out of battery power during your daily work. The AQ1000’s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.
Quick boot-up
Under 10 seconds!
From completely OFF to measurement ready in under 10 seconds!
Built-in PC and LS, and VLS
Power checker (PC)
Measures and displays optical power of incominglight for testing network performance.
Light source (LS)
Outputs a stable, continuouswave/modulated light for measuring end-to-end attenuationaccurately when paired with an optical power sensor.
Visible light source (VLS)
Outputs red light for checking continuity of launch fibers or short fiber trunks. Breaks and bending in fiber can be identified visually. (/VLS option is required.)
