High Isolation Filter WDM, 1600-1670 Pass, 1290-1580 Reflect (H3), 250um fiber 1m, no connector Specifications Parameter Value Pass wavelength (nm) 1600-1670 Reflection wavelength (nm) 1290-1580 Pass insertion loss (dB) ≤1.0 Reflection insertion loss (dB) ≤1.1 Pass channel isolation (dB) ≥45 Reflection channel isolation (dB) ≥45 Directivity (dB) ≥55 PDL (dB) ≤0.2 Return Loss (dB) >50 Power Handling (mW) 300 Operating Temperature (°C) 0 ~ +70 Fiber Type SMF-28e, 250um Storage Temperature (°C) -40 ~ +85 Dimensions (mm) φ5.5×L35
Specifications
Parameter
Value
Pass wavelength (nm)
1600-1670
Reflection wavelength (nm)
1290-1580
Pass insertion loss (dB)
≤1.0
Reflection insertion loss (dB)
≤1.1
Pass channel isolation (dB)
≥45
Reflection channel isolation (dB)
Directivity (dB)
≥55
PDL (dB)
≤0.2
Return Loss (dB)
>50
Power Handling (mW)
300
Operating Temperature (°C)
0 ~ +70
Fiber Type
SMF-28e, 250um
Storage Temperature (°C)
-40 ~ +85

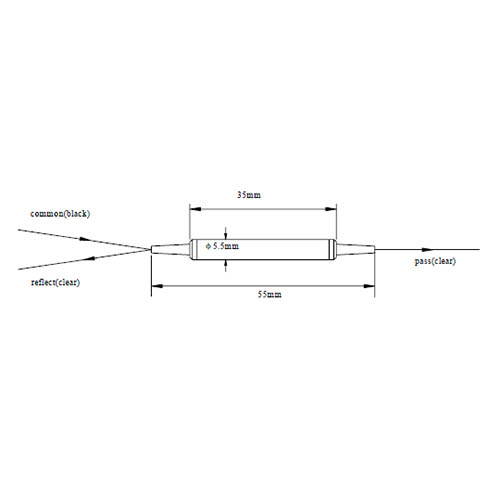

Dimensions (mm)
φ5.5×L35
